Built for Maine State Music Theatre's production of Joseph and the Amazing Technicolor Dreamcoat
Scenic Design & Drafting by William Mohney

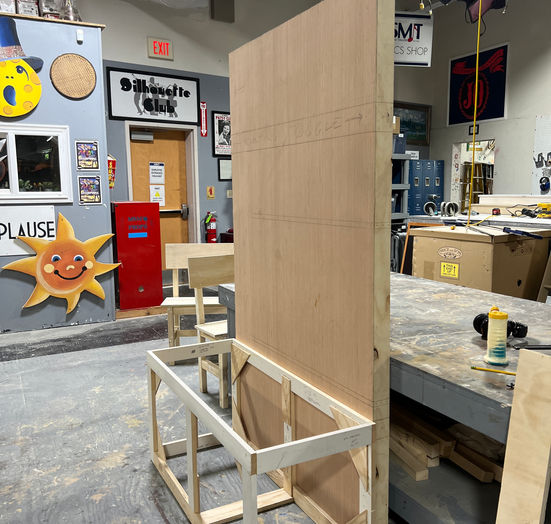

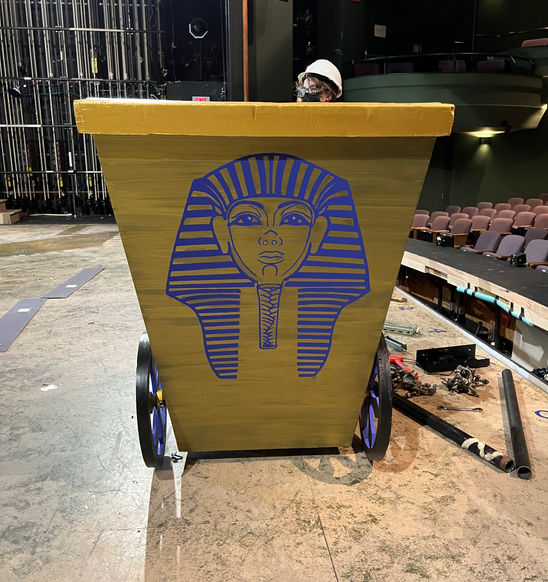

Angled Frame traced out and cut to fit drafting, then faced on each side by lauan sheets that were routed along the edges to sit flush atop the framing. All three sides were then attached together and a platform on the bottom was built to accommodate each angle. Seat atop the platform created and stage weights were attached to the bottom of the unit to prevent toppling. Strips of foam were cut to line the frame for decoration and attached using contact adhesive. Chariot wheels were traced according to drafting and glued up in several layers. Casters were attached to the bottom of the unit for functionality before the unit was given to the paints department to do the final paint treatment.
